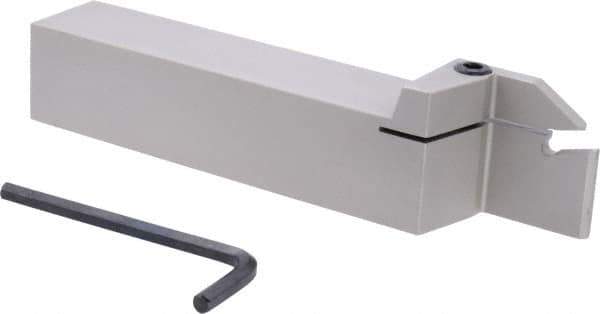

Iscar - External Thread, 1.26" Max Depth of Cut, 0.236" Min Groove Width, 7" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1-1/4" Shank Height x 1-1/4" Shank Width, GI.. Insert Style, GHG Toolholder Style, Series Cut Grip
Item #: 52713393
Brand: Iscar
Model #: 2800780
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 7.0000 |
| Series | Cut Grip |
| Toolholder Style | GHG |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1500 |
| Complete Insert Compatibility | GIF 6.00E-1.20; GIF 6.00E-0.80; GIF 6.00E-0.40; GIF 6.35-0.55; GIF 6.35-0.50; GIM 6C; GIMF 605; GIMF 608; GIMF 808; GIMY 808 |
