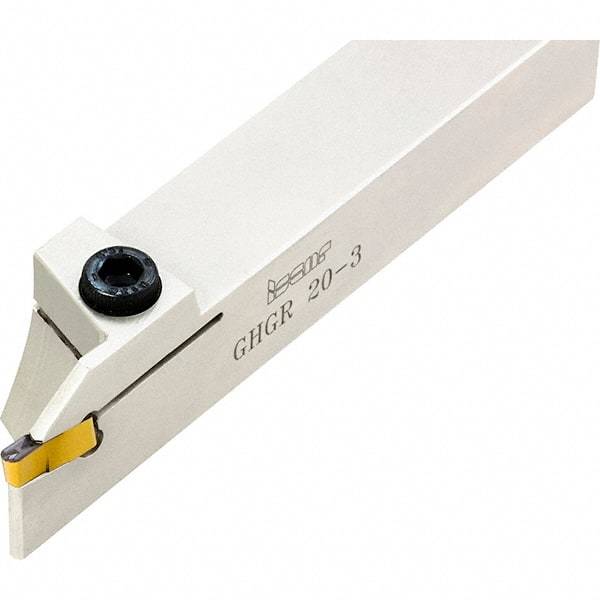

Iscar - External Thread, 0.6693" Max Depth of Cut, 0.4mm Min Groove Width, 120mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, GI.. Insert Style, GHG Toolholder Style, Series Cut Grip
Item #: 52713344
Brand: Iscar
Model #: 2800608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Minimum Groove Width (Decimal Inch) | 0.0157 |
| Minimum Groove Width (mm) | 0.40 |
| Maximum Groove Width (Decimal Inch) | 0.0945 |
| Maximum Groove Width (mm) | 2.40 |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Series | Cut Grip |
| Toolholder Style | GHG |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7559 |
| Complete Insert Compatibility | GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.2J; GIM 2.4; GIP 2.22-0.15; GIP 2.39-0.15; GIPM 2.35-A46L; GIPM 2.35-A46R |
