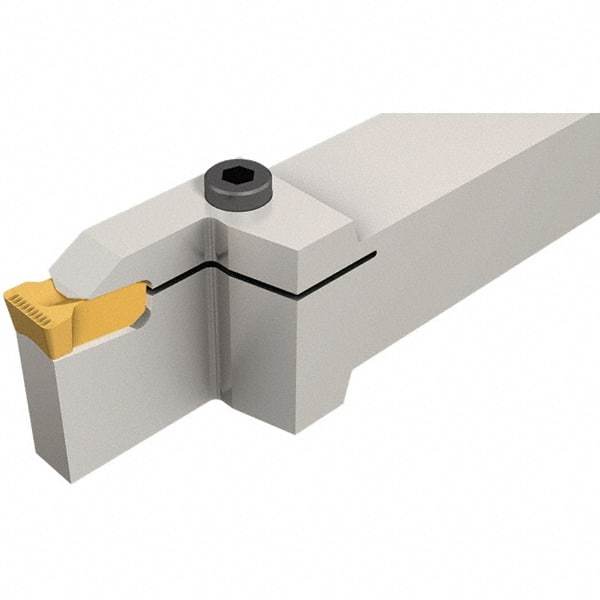

Iscar - GHD, External, Right Hand, 1-1/2" Max Depth of Cut, 0.512 to 0.685" Groove Width, Indexable Grooving Tool Holder - TIGER 1.. Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 7" OAL
Item #: 52713195
Brand: Iscar
Model #: 2800831
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Minimum Groove Width (Decimal Inch) | 0.5120 |
| Maximum Groove Width (Decimal Inch) | 0.6850 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | GHD |
| Insert Compatibility | TIGER 1.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0100 |
| Complete Insert Compatibility | TIGER 1453-152; TIGER 1453-152-CW; TIGER 16.63-1.52; TIGER 1740-200 |
