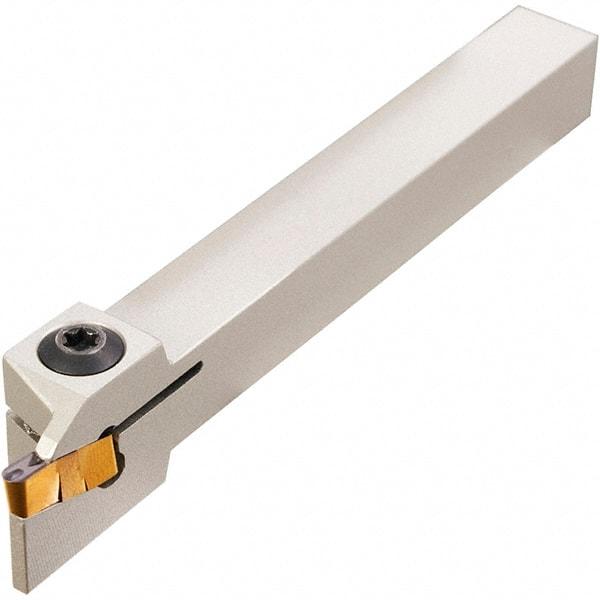

Iscar - GHD, External, Right Hand, 10mm Max Depth of Cut, 4 to 5mm Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 120mm OAL
Item #: 52713153
Brand: Iscar
Model #: 2800157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | GHD |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 18.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7244 |
| Complete Insert Compatibility | GIF 4.00E-0.80; GIF 4.00E-0.60; GIF 4.00E-0.40; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIF 4.86-0.30; GIF 5.00E-0.60; GIF 5.00E-0.40; GIM 4; GIM 4C; GIM 4J; GIM 5C |
