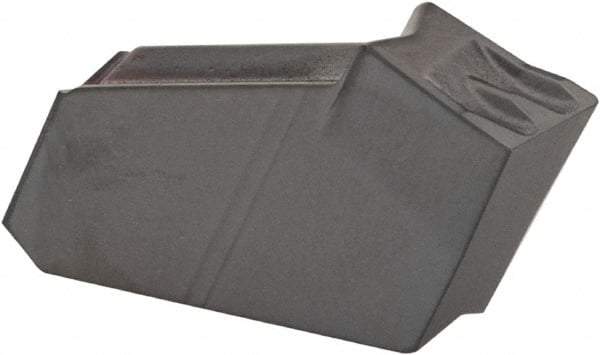

Iscar - GFL W IC354 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 8° Left Hand Lead Angle, 0.0079" Cnr Rad, TiCN Coated, Single End
Item #: 52710696
Brand: Iscar
Model #: 6002686
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFL |
| Lead Angle Direction | Left Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | W |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Manufacturers Catalog Number | GFL 3W-8D |
