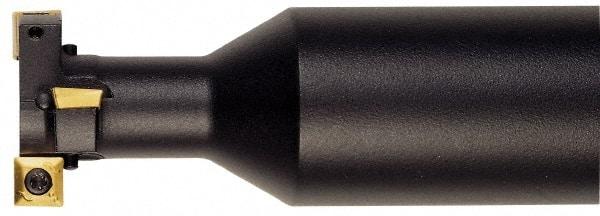

Iscar - 1.238" Cutting Diam x 1/2" Cutting Width, 4 Cutter Inserts, 5/8" Shank Diam, Indexable T-Slot Cutter - Insert Style XPMT-HQ, 3-1/2" OAL, 2 Flutes
Item #: 52707015
Brand: Iscar
Model #: 3100735
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2380 |
| Cutting Width (Decimal Inch) | 0.4980 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | ETS |
| Number of Cutter Inserts | 4 |
| Insert Style | XPMT-HQ |
| Staggered Tooth | No |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 3.5000 |
| Maximum Reach (Decimal Inch) | 1.5800 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Insert Inscribed Circle (Decimal Inch) | 0.4020 (XPMT 100408-HQ); 0.4020 (XPMT 100408T-HQ) |
| Insert Radius (Decimal Inch) | 0.0240 (XPMT 100408-HQ); 0.0240 (XPMT 100408T-HQ) |
| Complete Insert Compatibility | XPMT 100408-HQ; XPMT 100408T-HQ |
| Manufacturers Catalog Number | ETS D125-050W.62-10 |
