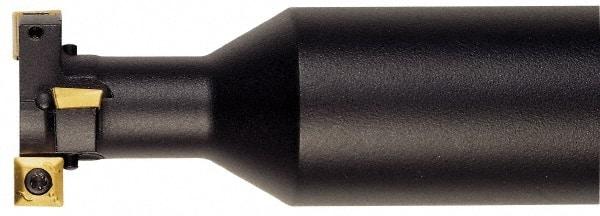

Iscar - 1.238" Cutting Diam x 0.478" Cutting Width, 2 Cutter Inserts, 1" Shank Diam, Indexable T-Slot Cutter - Insert Style XPMT-HQ, 4-1/2" OAL, 1 Flute
Item #: 52707007
Brand: Iscar
Model #: 3100580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2380 |
| Cutting Width (Decimal Inch) | 0.4780 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | ETS |
| Number of Cutter Inserts | 2 |
| Insert Style | XPMT-HQ |
| Staggered Tooth | No |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.6500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Maximum Reach (Decimal Inch) | 1.8900 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Insert Inscribed Circle (Decimal Inch) | 0.4020 (XPMT 100408-HQ); 0.4020 (XPMT 100408T-HQ) |
| Insert Radius (Decimal Inch) | 0.0240 (XPMT 100408-HQ); 0.0240 (XPMT 100408T-HQ) |
| Complete Insert Compatibility | XPMT 100408-HQ; XPMT 100408T-HQ |
| Manufacturers Catalog Number | ETS D125-048W1.00-10 |
