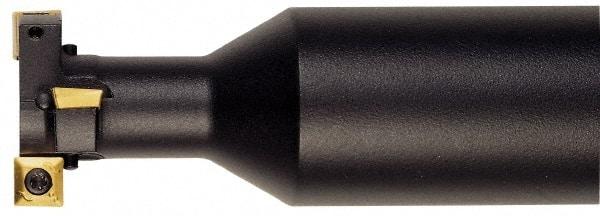

Iscar - 0.78" Cutting Diam x 0.32" Cutting Width, 2 Cutter Inserts, 5/8" Shank Diam, Indexable T-Slot Cutter - Insert Style QOMT-HQ\xB6XOMT-HQ, 3-1/4" OAL, 1 Flute
Item #: 52706975
Brand: Iscar
Model #: 3100577
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7800 |
| Cutting Width (Decimal Inch) | 0.3200 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | ETS |
| Number of Cutter Inserts | 2 |
| Insert Style | QOMT-HQ; XOMT-HQ |
| Staggered Tooth | No |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.3900 |
| Overall Length (Decimal Inch) | 3.2500 |
| Maximum Reach (Decimal Inch) | 0.9000 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Insert Inscribed Circle (Decimal Inch) | 0.2430 (QOMT 060208TN-HQ); 0.2430 (XOMT 060204-HQ); 0.2430 (XOMT 060204T-HQ) |
| Insert Radius (Decimal Inch) | 0.0160 (XOMT 060204-HQ); 0.0160 (XOMT 060204T-HQ); 0.0310 (QOMT 060208TN-HQ) |
| Complete Insert Compatibility | QOMT 060208TN-HQ; XOMT 060204-HQ; XOMT 060204T-HQ |
| Manufacturers Catalog Number | ETS D078-032W.62-06 |
