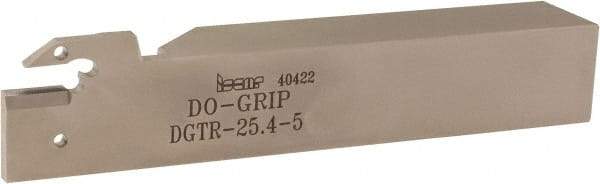

Iscar - External Thread, 0.189" Min Groove Width, 6" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 0.157 Seat Size, 1" Shank Height x 1" Shank Width, DG../GRIP Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701984
Brand: Iscar
Model #: 2301373
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.1890 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG..; GRIP |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Head Length (Decimal Inch) | 1.3000 |
| Shank Length (Decimal Inch) | 4.7000 |
| Manufacturers Catalog Number | DGTR 25.4-5 |
| Complete Insert Compatibility | DGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630 |
| Insert Seat Size | 0.2 |
