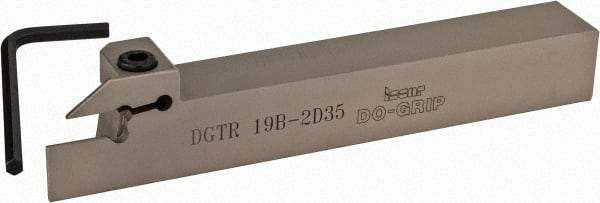

Iscar - External Thread, 0.689" Max Depth of Cut, 0.075" Min Groove Width, 5-1/2" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 0.063 Seat Size, 3/4" Shank Height x 3/4" Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701919
Brand: Iscar
Model #: 2301425
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Minimum Groove Width (Decimal Inch) | 0.0750 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7200 |
| Head Length (Decimal Inch) | 1.2600 |
| Shank Length (Decimal Inch) | 4.2400 |
| Manufacturers Catalog Number | DGTR 19B-2D35 |
| Complete Insert Compatibility | DGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630 |
| Insert Seat Size | 0.1 |
