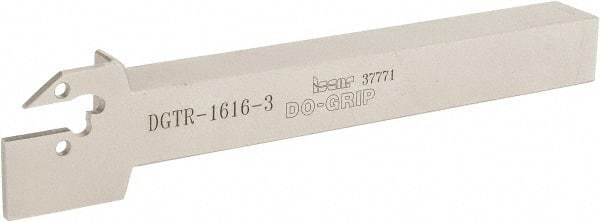

Iscar - 3mm Min Groove Width, 150mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 16mm Shank Height x 16mm Shank Width, DG. 1../DG. 3.. Insert Style, DGT Toolholder Style, Series Do Grip
Item #: 52701869
Brand: Iscar
Model #: 2301256
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | Do Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG. 1..; DG. 3.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
