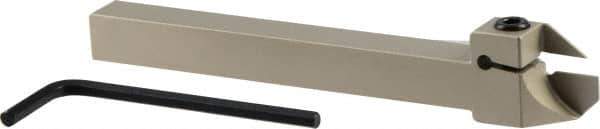

Iscar - External Thread, 0.591" Max Depth of Cut, 0.055" Min Groove Width, 5-1/2" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1/2" Shank Height x 1/2" Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701745
Brand: Iscar
Model #: 2301417
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Minimum Groove Width (Decimal Inch) | 0.0550 |
| Maximum Groove Width (Decimal Inch) | 0.0550 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4800 |
| Complete Insert Compatibility | DGL 1400JS-15D; DGL 1402J-8D; DGN 1402J; DGR 1400JS-15D; DGR 1402J-8D |
