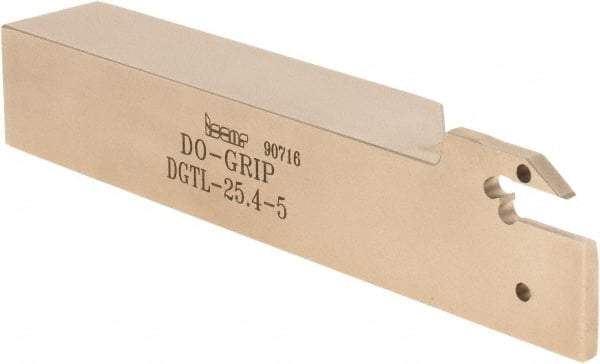

Iscar - External Thread, 1-1/2" Max Depth of Cut, 0.189" Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701588
Brand: Iscar
Model #: 2301375
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Minimum Groove Width (Decimal Inch) | 0.1890 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Complete Insert Compatibility | DGL 5003C-4D; DGL 5003J-4D; DGN 4803C; DGN 4803J; DGN 5003C; DGN 5003J; DGN 5003JT; DGN 5003UT; DGR 4800CS-4D; DGR 4800CS-8D; DGR 4800JS-4D; DGR 4800JS-8D; DGR 4803C-4D; DGR 4803C-8D; DGR 4803J-4D; DGR 4803J-8D |
