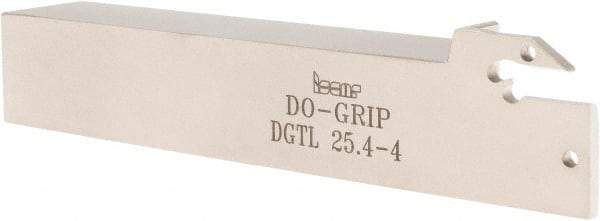

Iscar - External Thread, 1" Max Depth of Cut, 0.157" Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701570
Brand: Iscar
Model #: 2301299
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Complete Insert Compatibility | DGL 4003C-4D; DGL 4003J-4D; DGLC 4003C-4D; DGN 4003C; DGN 4003J; DGN 4003JT; DGN 4003UA; DGN 4003UT; DGNC 4003C; DGR 4000JS-15D; DGR 4003C-4D; DGR 4003J-4D; DGRC 4003C-4D |
