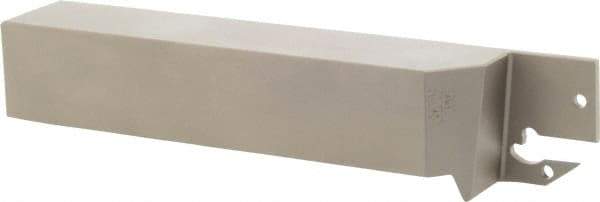

Iscar - External Thread, 0.69" Max Depth of Cut, 0.118" Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701562
Brand: Iscar
Model #: 2301297
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6900 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Complete Insert Compatibility | DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGLC 3102C-6D; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3102LF; DGN 3102LFT; DGN 3202J; DGNC 3102C; DGNM 3202C; DGNM 3202J; DGR 3100JS-15D; DGR 3100JS-6D; DGR 3102C-15D; D |
