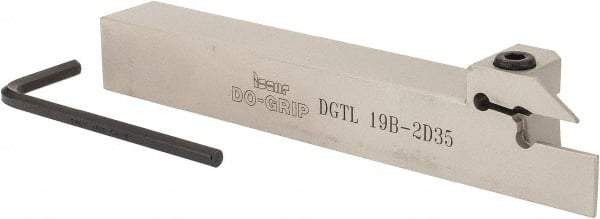

Iscar - 0.689" Max Depth of Cut, 0.075" Min Groove Width, 5-1/2" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, DG. 1../DG. 2.. Insert Style, DGT Toolholder Style, Series Do Grip
Item #: 52701539
Brand: Iscar
Model #: 2301426
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Minimum Groove Width (Decimal Inch) | 0.0750 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | Do Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG. 1..; DG. 2.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Length (Decimal Inch) | 1.2600 |
