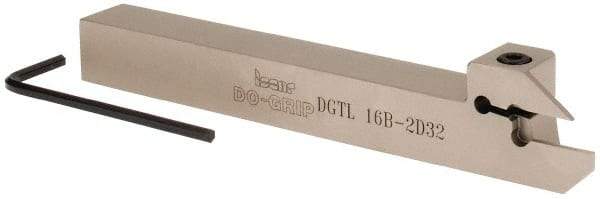

Iscar - 0.6299" Max Depth of Cut, 1.9mm Min Groove Width, 140mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 16mm Shank Height x 16mm Shank Width, DG. 1../DG. 2.. Insert Style, DGT Toolholder Style, Series Do Grip
Item #: 52701455
Brand: Iscar
Model #: 2301391
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Minimum Groove Width (Decimal Inch) | 0.0750 |
| Minimum Groove Width (mm) | 1.90 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Length (mm) | 140.00 |
| Series | Do Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG. 1..; DG. 2.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Length (mm) | 30.60 |
| Head Length (Decimal Inch) | 1.2047 |
