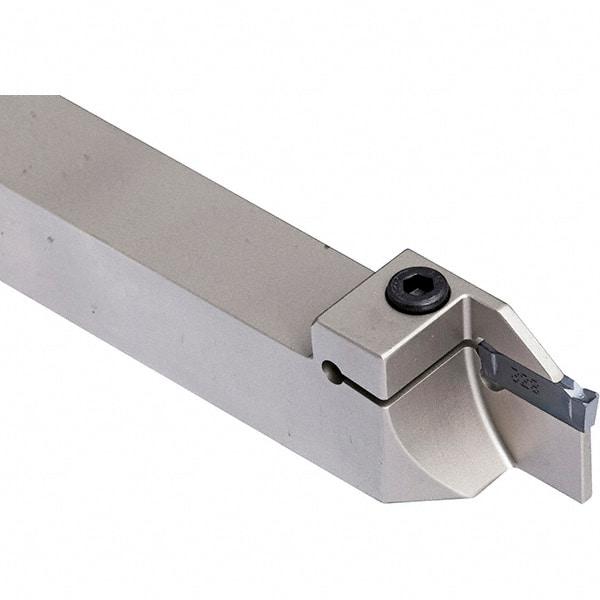

Iscar - External Thread, 0.5906" Max Depth of Cut, 1.9mm Min Groove Width, 140mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, DGN Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 52701414
Brand: Iscar
Model #: 2301389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Minimum Groove Width (mm) | 1.90 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DGN |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4409 |
| Complete Insert Compatibility | DGN 1900WP; DGN 2000P; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C |
