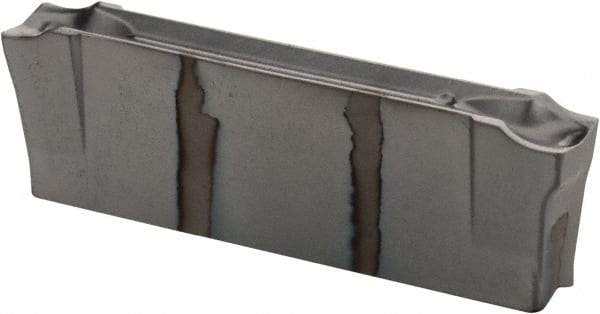

Iscar - DGR J IC354 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, 0.0079" Cnr Rad, TiCN Coated, Double End
Item #: 52701067
Brand: Iscar
Model #: 6002356
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGR |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Coating Process | PVD |
| Overall Length (mm) | 21.00 |
| Overall Length (Decimal Inch) | 0.8268 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | DGR 3102J-6D |
