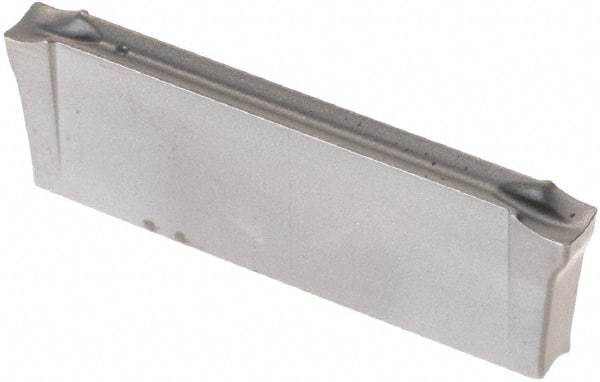

Iscar - DGR2202 IC20 Grade, 0.0866" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, 0.0079" Cnr Rad, Double End
Item #: 52700929
Brand: Iscar
Model #: 6002330
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGR |
| Insert Size | 2202 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Do-Grip |
| Relief Angle | 7 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 21.00 |
| Overall Length (Decimal Inch) | 0.8268 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Overall Width (mm) | 2.20 |
| Overall Width (Decimal Inch) | 0.0866 |
