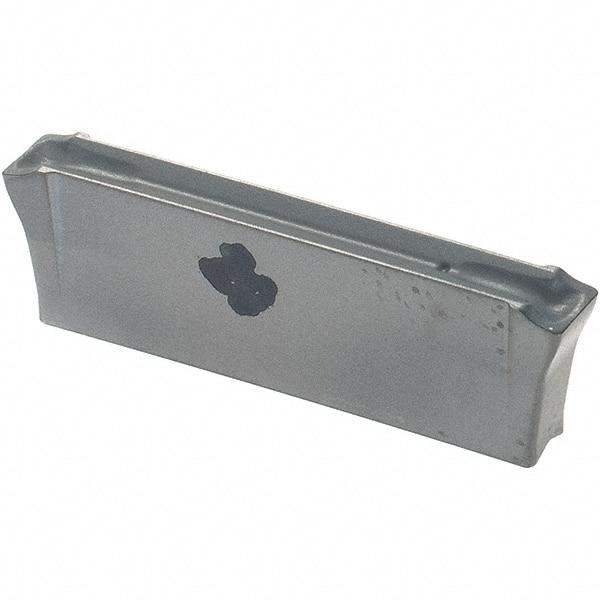

Iscar - DGN3003 IC20 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0098" Cnr Rad, Double End
Item #: 52700408
Brand: Iscar
Model #: 6002543
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 3003 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Do-Grip |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 20.50 |
| Overall Length (Decimal Inch) | 0.8071 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.25 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
