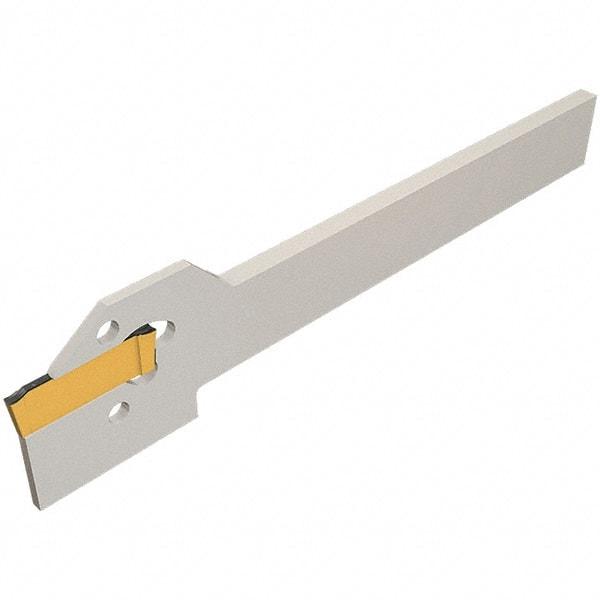

Iscar - 4" Groove Width, Neutral Cut, DGFS Indexable Grooving Blade - DGN-UT/UA, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C DGRC/LC-C, DGR/L-J/JS, GRIP, GRIP (Full Radius) Insert Style, Series Do-Grip
Item #: 52699873
Brand: Iscar
Model #: 2301414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Blade Style | DGFS |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 100.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9370 |
| Blade Height (mm) | 28.50 |
| Blade Height (Decimal Inch) | 1.1221 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | DGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; GRIP; GRIP (Full Radius) |
| Complete Insert Compatibility | GRIP 4002Y; GRIP 4004Y; GRIP 4020Y |
