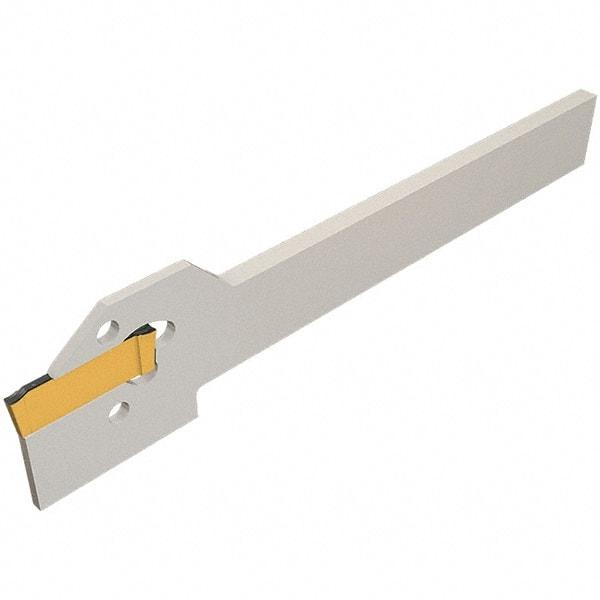

Iscar - 1.9 to 2.5mm Groove Width, Neutral Cut, DGFS Indexable Grooving Blade - Multiple Insert Styles, Series Do-Grip
Item #: 52699857
Brand: Iscar
Model #: 2301412
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 1.90 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Blade Style | DGFS |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 65.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5591 |
| Blade Height (mm) | 28.50 |
| Blade Height (Decimal Inch) | 1.1221 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-P; DGR-WP; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS |
| Complete Insert Compatibility | DGN 2002Z; DGN 2202UA; DGN 2202UT; DGR 1900WP-12D; DGR 1900WP-5D; DGR 2000P-15D; DGR 2000P-6D; DGR 2000ZS-15D; DGR 2000ZS-6D; DGR 2002Z-15D; DGR 2002Z-6D; DGR 2400WP-12D; DGR 2400WP-5D |
