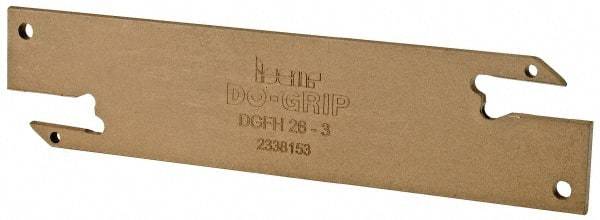

Iscar - 1.0236" Blade Height, 0.0945" Blade Width, 4.3307" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - DGFH Blade
Item #: 52699592
Brand: Iscar
Model #: 2301242
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | DGFH |
| Insert Style | DG.1..; DG.3.. |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5400 |
| Cutting Height (mm) | 21.40 |
| Cutting Height (Decimal Inch) | 0.8425 |
| Minimum Insert Width (mm) | 3.00 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Maximum Insert Width (mm) | 3.18 |
| Maximum Insert Width (Decimal Inch) | 0.1252 |
| Manufacturers Catalog Number | DGFH 26-3 |
