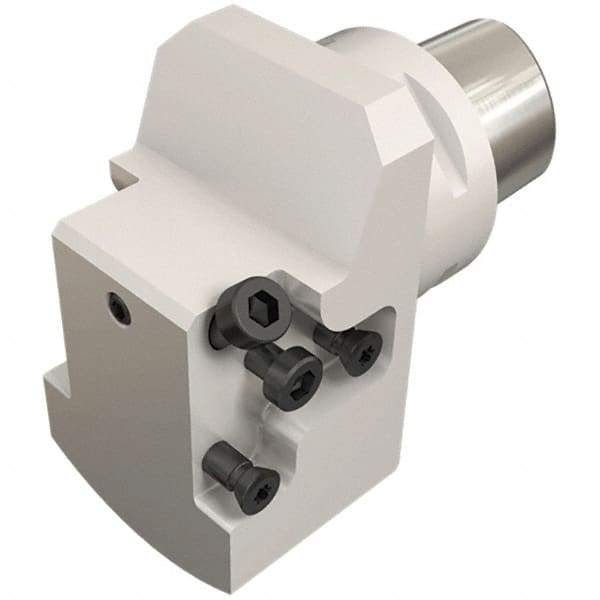

Iscar - GDM.., GI.. Insert, 65mm Head Length, Modular Grooving Blade Holder Head - System Size C6, Through Coolant, Series CAMFIX, ExchangeableHeads
Item #: 52698982
Brand: Iscar
Model #: 2880032
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CAMFIX; ExchangeableHeads |
| Modular Head Style | Blade Holder Head |
| Insert Style | GDM..; GI.. |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Blade Style Compatibility | GADR/L-8; GAFG-R/L-8; PCADR/L 34N-RE |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 32.50 |
| Center to Cutting Edge (Decimal Inch) | 1.2795 |
| Minimum Hole Diameter (mm) | 0.59 |
| Minimum Hole Diameter (Decimal Inch) | 0.0232 |
| Minimum Depth of Cut (mm) | 15.00 |
| Minimum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Complete Insert Compatibility | GDMF 808; GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-1.20; GIF 8.00E-0.80; GIF 8.00E-0.40 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
