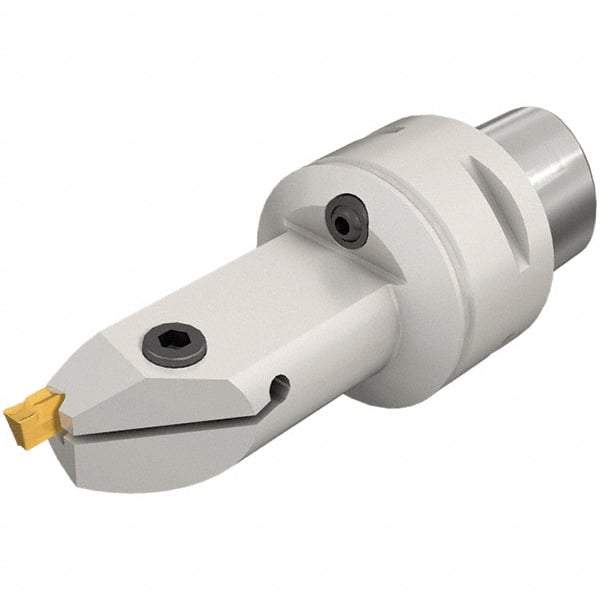

Iscar - C5-HFI, Internal, Right Hand, 5.3mm Max Depth of Cut, 3 to 6mm Groove Width, Indexable Grooving Tool Holder - Through Coolant
Item #: 52698941
Brand: Iscar
Model #: 2500496
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2087 |
| Maximum Depth of Cut (mm) | 5.30 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Toolholder Style | C5-HFI |
| Series | Camfix |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 11.30 |
| Center to Cutting Edge (Decimal Inch) | 0.4449 |
| Head Length (mm) | 52.00 |
| Head Length (Decimal Inch) | 2.0472 |
