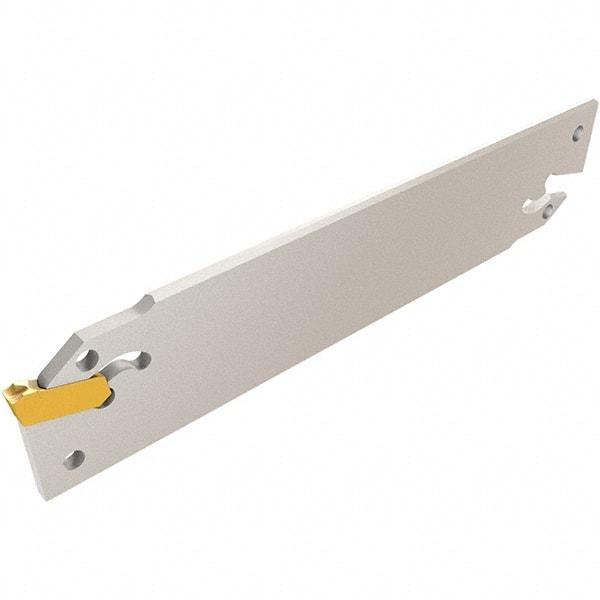

Iscar - 8" Groove Width, 40mm Max Depth of Cut, Right Hand Cut, CGH Indexable Grooving Blade - GIMF, GIMM 8CC, GIMY, GIMY (Full Radius), GIMY-F Insert Style, Series Cut Grip
Item #: 52695863
Brand: Iscar
Model #: 2800794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Blade Style | CGH |
| Series | Cut Grip |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 6.80 |
| Blade Width (Decimal Inch) | 0.2677 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | GIMF; GIMM 8CC; GIMY; GIMY (Full Radius); GIMY-F |
| Complete Insert Compatibility | GIMF 808; GIMY 808; GIMY 840; GIMY 840F |
