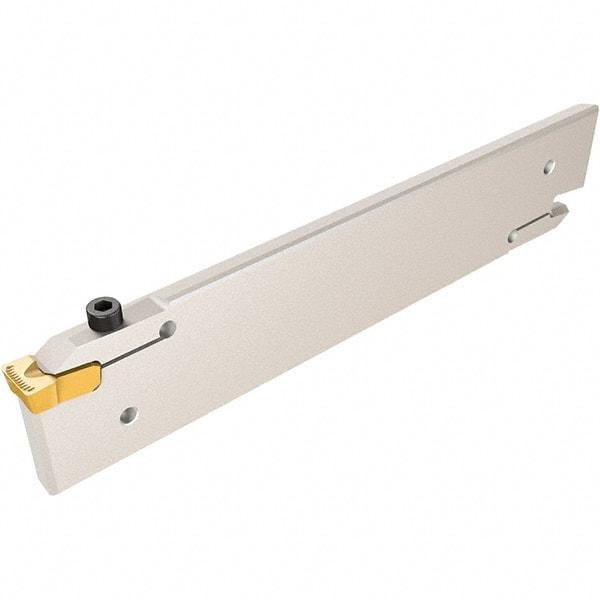

Iscar - 12 to 14.5mm Groove Width, 93mm Max Depth of Cut, Left Hand Cut, CGH Indexable Grooving Blade - GIMY Insert Style, Series Cut Grip
Item #: 52695715
Brand: Iscar
Model #: 2800785
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 93.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.6614 |
| Blade Style | CGH |
| Series | Cut Grip |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 9.50 |
| Blade Width (Decimal Inch) | 0.3740 |
| Maximum Groove Width (mm) | 14.50 |
| Maximum Groove Width (Decimal Inch) | 0.5709 |
| Overall Length (mm) | 260.00 |
| Overall Length (Decimal Inch) | 10.2362 |
| Insert Style | GIMY |
| Complete Insert Compatibility | GIMY 1260 |
