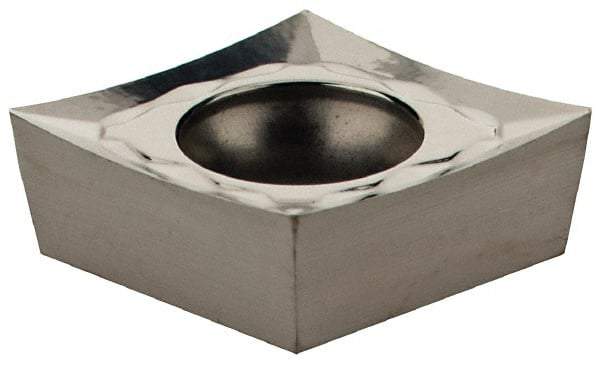

Iscar - CCGT3-0 AS Grade IC20 Carbide Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.0079" Corner Radius
Item #: 52694916
Brand: Iscar
Model #: 5540020
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 3-0 |
| Material | Carbide |
| Length (mm) | 9.70 |
| Length (Decimal Inch) | 0.3819 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Material Grade | C2/C3 |
| Chip Breaker | AS |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCGT32.50.5 |
| Rake | Positive |
| Relief Angle | 7 |
| Primary Workpiece Material | N; K; M |
| Included Angle | 80 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Shape | Diamond |
