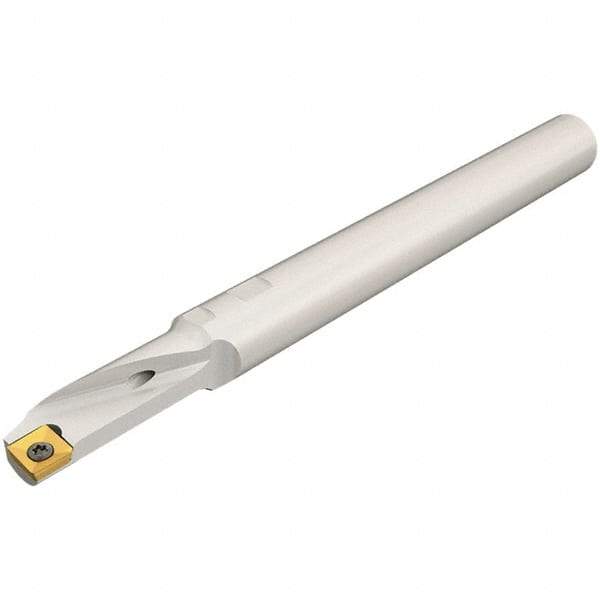

Iscar - 10mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, A-SXFO Indexable Boring Bar - 28.5mm Max Bore Depth, XOMT 0602.. Insert
Item #: 52693553
Brand: Iscar
Model #: 3601268
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SXFO |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 10.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 28.50 |
| Maximum Bore Depth (Decimal Inch) | 1.1221 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | XOMT 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Positive |
| Center to Cutting Edge (mm) | 4.90 |
| Center to Cutting Edge (Decimal Inch) | 0.1929 |
| Rake Angle | 1.75 |
| Complete Insert Compatibility | XOMT 060204-DT |
