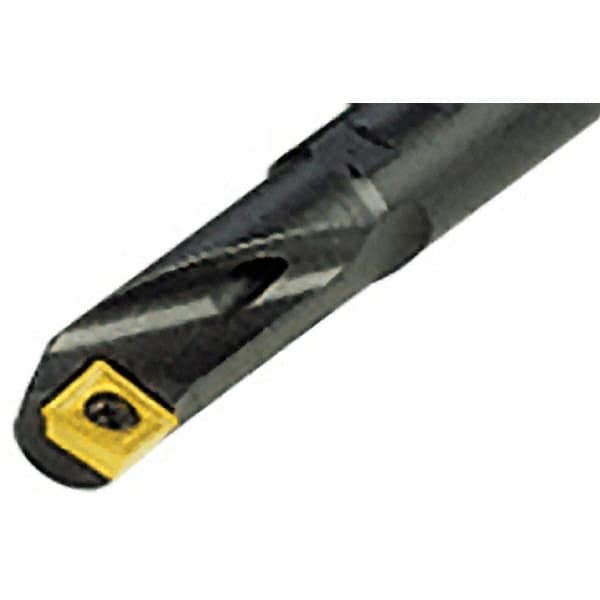

Iscar - 0.395" Min Bore Diam, 4-1/2" OAL, 3/8" Shank Diam, A-SXFOR Indexable Boring Bar - 1-1/8" Max Bore Depth, XOMT 0602.. Insert
Item #: 52693504
Brand: Iscar
Model #: 3601269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SXFOR |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.3950 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.1250 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | XOMT 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Positive |
| Center to Cutting Edge (Decimal Inch) | 0.1900 |
| Rake Angle | 1.75 |
| Complete Insert Compatibility | XOMT 060204-DT |
