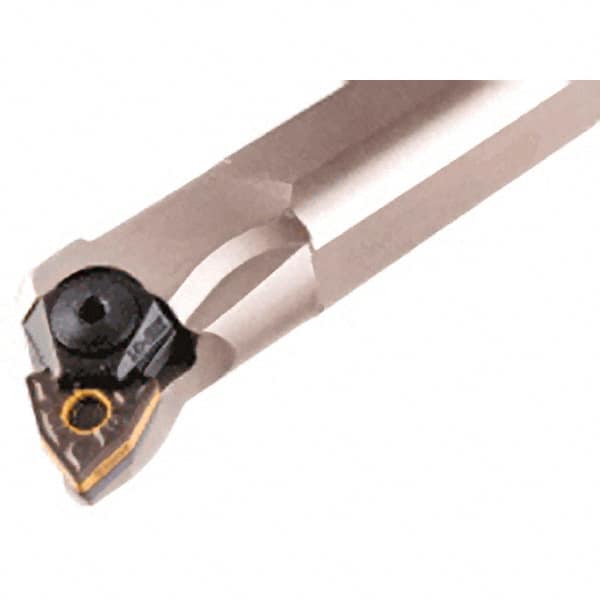

Iscar - 1.46" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, A-MWLN Indexable Boring Bar - 1.57" Max Bore Depth, WNM.. 3 Insert, Wedge Holding Method
Item #: 52691789
Brand: Iscar
Model #: 3601352
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MWLN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.4600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.5700 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | WNM.. 3 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.7700 |
| Rake Angle | -10 |
| Complete Insert Compatibility | WNMA 3-1; WNMA 3-2; WNMA 3-3; WNMA 331; WNMA 332; WNMG 3-.004-NF; WNMG 3-0-NF; WNMG 3-1-GN; WNMG 3-1-NF; WNMG 3-1-PP; WNMG 3-1-TF; WNMG 3-2-GN; WNMG 3-2-NF; WNMG 3-2-PP; WNMG 3-2-TF; WNMG 3-3-GN; WNMG 3-3-TF; WNMG 330-NF; WNMG 331-GN; WNMG 331-PP; WNMG 33 |
| Toolholder Material | Steel |
