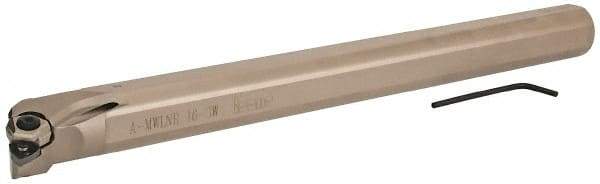

Iscar - 1.18" Min Bore Diam, 12" OAL, 1" Shank Diam, MWLN Indexable Boring Bar - 1.38" Max Bore Depth, Pin & Clamp Holding Method
Item #: 52691755
Brand: Iscar
Model #: 3601343
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MWLN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.1800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.3800 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Complete Insert Compatibility | WN.. 332 |
