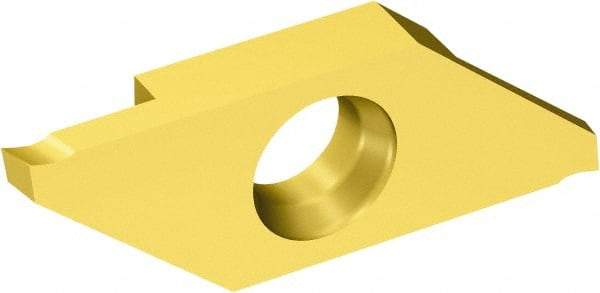

Sandvik Coromant - MACR3 MAC 1025 Grade, 0.0591" Cutting Width, Carbide Cutoff Insert - 15° Right Hand Lead Angle, 0.002" Cnr Rad, TiAlN/TiN Coated
Item #: 52641883
Brand: Sandvik Coromant
Model #: 5735449
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MACR |
| Insert Size | 3 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Series | CoroCut XS |
| Relief Angle | 6 |
| Chipbreaker | MAC |
| Maximum Depth of Cut (mm) | 6.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Full Radius | No |
| Multi-Use Application | Yes |
| Coating Process | PVD |
| Overall Length (mm) | 12.02 |
| Overall Length (Decimal Inch) | 0.4732 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Overall Width (mm) | 1.50 |
| Overall Width (Decimal Inch) | 0.0591 |
| Manufacturers Catalog Number | MACR 3 150-R 1025 |
