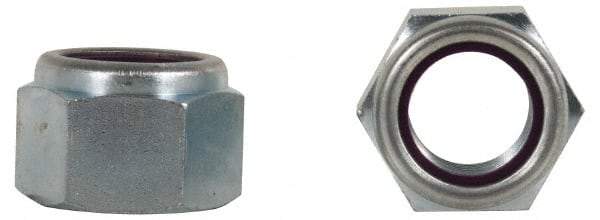

Value Collection - 1-1/8 - 7 UNC Grade B Hex Lock Nut with Nylon Insert - 1-5/8" Width Across Flats, 1-11/64" High, Zinc-Plated Finish
Item #: 52591815
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Hex lock nuts are the most common type of lock nut. They have six uniform sides that create a flat bearing surface.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Hex Lock Nut |
| Material | Steel |
| Thread Size | 1-1/8 - 7 |
| Height (Inch) | 1-11/64 |
| Height (Decimal Inch) | 1.1719 |
| Material Grade | Grade B |
| Finish/Coating | Zinc-Plated |
| Thread Direction | Right Hand |
| Locking Style | Insert |
| Insert Material | Nylon |
| Width Across Flats (Inch) | 1-5/8 |
| Width Across Flats (Decimal Inch) | 1.614 to 1.627 |
| Thread Standard | UNC |
| Military Specification | Does Not Meet Military Specifications |
