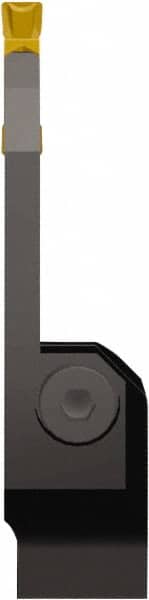

Seco - CFS, External, Right Hand, 2.52" Max Depth of Cut, 8mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 3008.. Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 7" OAL
Item #: 52499134
Brand: Seco
Model #: 57008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 2.5200 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (mm) | 8.00 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | CFS |
| Insert Compatibility | LC.. 3008.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 4.1100 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 300804-0800-GG; LCGF 300804-0800-GS; LCMF 300804-0800-FT; LCMF 300808-0800-FT; LCMF 300808-1000-FT; LCMF 300812-0800-FT; LCMF 300812-1000-FT; LCMF 3008M0-0800-MP; LCMF 3008M0-1000-MP; LCMR 300808-0800-FT; LCMR 300808-1000-FT; LCMR 300812-0800-FT |
