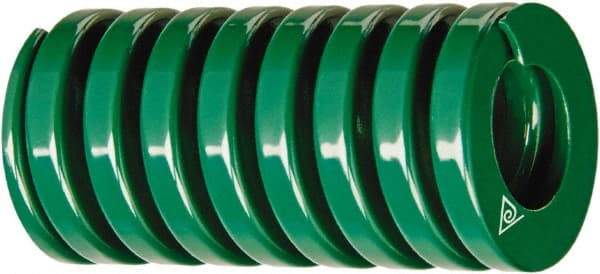

Associated Spring Raymond - 3/8" Hole Diam, 3/16" Rod Diam, 1-3/4" Free Length, Green Die Spring - 35 Lb Max Deflection, 0.9488" Max Deflection, Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 3/8" Hole Diam, 3/16" Rod Diam, 1-3/4" Free Length, Green Die Spring - 35 Lb Max Deflection, 0.9488" Max Deflection, Light Duty, Chromium Alloy Steel


Item #: 52377447
Brand: Associated Spring Raymond
Model #: 303-107-D
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (Inch) 3/8
Rod Diameter (Inch) 3/16
Free Length (Inch) 1-3/4
Load Type Light-Duty
Color Green
Maximum Deflection Load (N) 155.69
Maximum Deflection Load (Lb.) 35.00
Maximum Deflection (mm) 24.10
Maximum Deflection (Decimal Inch) 0.9488
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$6.97
