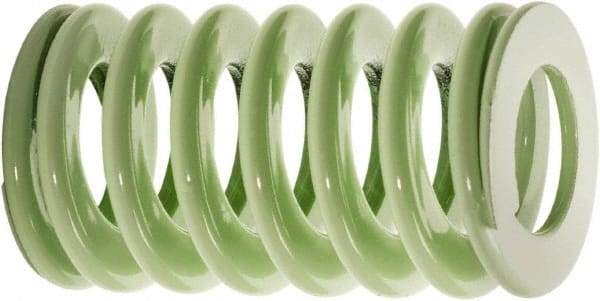

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 5" Free Length, Light Green Die Spring - 783 Lb Max Deflection, 3.248" Max Deflection, Ultra Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 5" Free Length, Light Green Die Spring - 783 Lb Max Deflection, 3.248" Max Deflection, Ultra Light Duty, Chromium Alloy Steel


Item #: 52377009
Brand: Associated Spring Raymond
Model #: 302-820-D
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (Inch) 2
Rod Diameter (Inch) 1
Free Length (mm) 127.00
Free Length (Inch) 5
Load Type Ultra Light-Duty
Color Light Green
Maximum Deflection Load (N) 3482.96
Maximum Deflection Load (Lb.) 783.00
Maximum Deflection (mm) 82.50
Maximum Deflection (Decimal Inch) 3.2480
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$252.01
