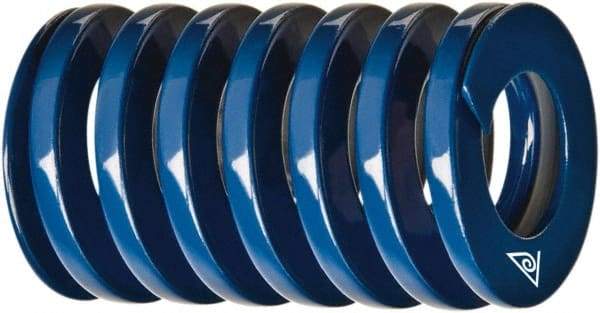

Associated Spring Raymond - 5/8" Hole Diam, 11/32" Rod Diam, 1-1/2" Free Length, Blue Die Spring - 139 Lb Max Deflection, 0.7008" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52373685
Brand: Associated Spring Raymond
Model #: 304-306-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 5/8 |
| Rod Diameter (Inch) | 11/32 |
| Free Length (Inch) | 1-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 618.30 |
| Maximum Deflection Load (Lb.) | 139.00 |
| Maximum Deflection (mm) | 17.80 |
| Maximum Deflection (Decimal Inch) | 0.7008 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
