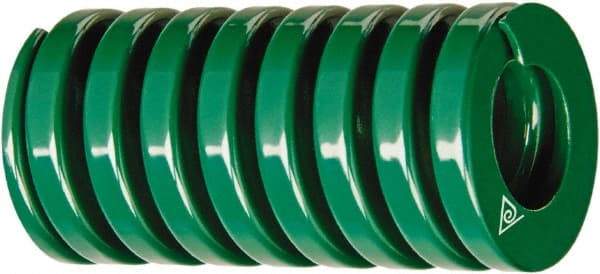

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 4" Free Length, Green Die Spring - 1533 Lb Max Deflection, 1.9724" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52372497
Brand: Associated Spring Raymond
Model #: 303-916-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 4 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 6819.12 |
| Maximum Deflection Load (Lb.) | 1533.00 |
| Maximum Deflection (mm) | 50.10 |
| Maximum Deflection (Decimal Inch) | 1.9724 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
