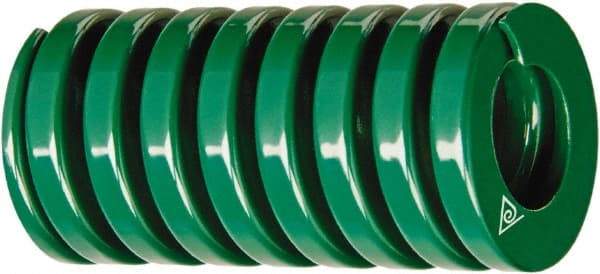

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 10" Free Length, Green Die Spring - 1289 Lb Max Deflection, 6.3307" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52370962
Brand: Associated Spring Raymond
Model #: 303-840-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (mm) | 254.00 |
| Free Length (Inch) | 10 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 5733.76 |
| Maximum Deflection Load (Lb.) | 1289.00 |
| Maximum Deflection (mm) | 160.80 |
| Maximum Deflection (Decimal Inch) | 6.3307 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
