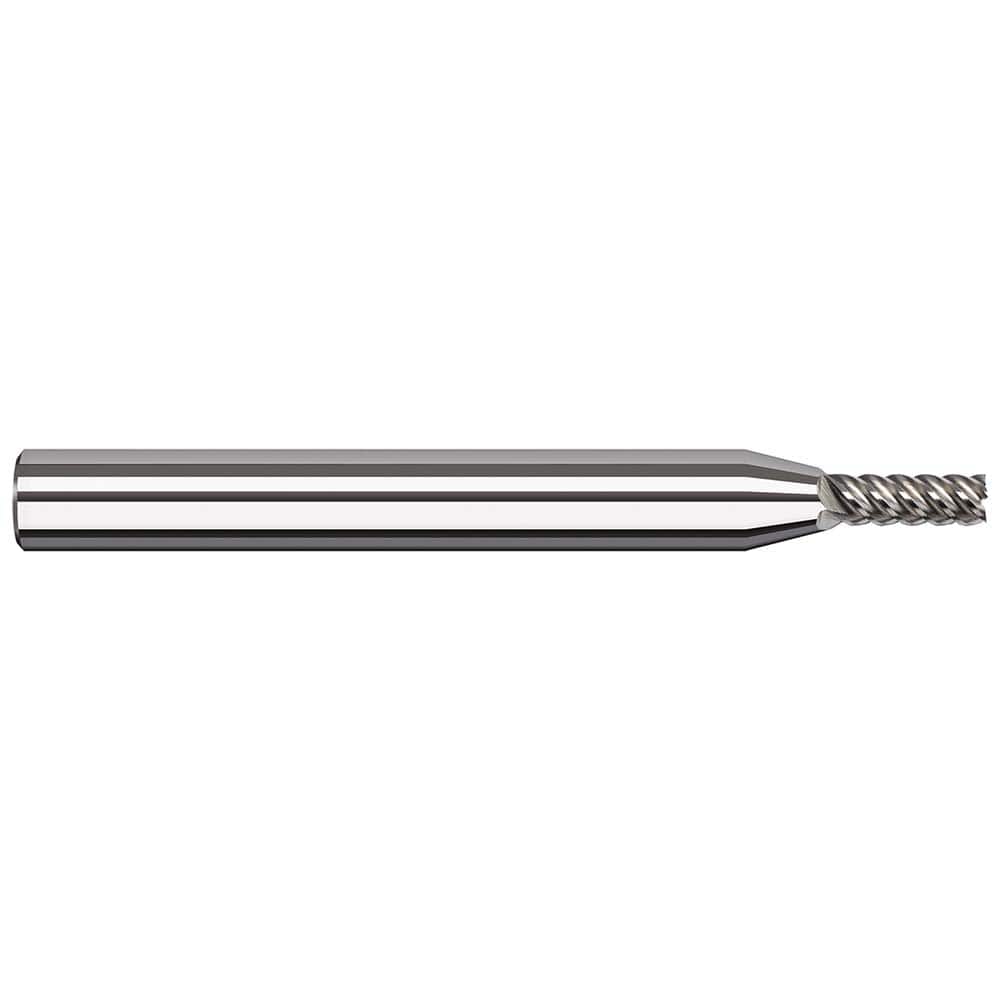

Harvey Tool - Square End Mills; Mill Diameter (mm): 1.20 ; Mill Diameter (Inch): 3/64 ; Mill Diameter (Decimal Inch): 0.0470 ; Length of Cut (Decimal Inch): 0.1410 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 52310752
Brand: Harvey Tool
Model #: 948847
Product Specifications
Square End Mills; Mill Diameter (mm): 1.20 ; Mill Diameter (Inch): 3/64 ; Mill Diameter (Decimal Inch): 0.0470 ; Length of Cut (Decimal Inch): 0.1410 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (mm) | 1.20 |
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0470 |
| Length of Cut (Decimal Inch) | 0.1410 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 50 |
| Variable Helix | Yes |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Finishers - Square |
