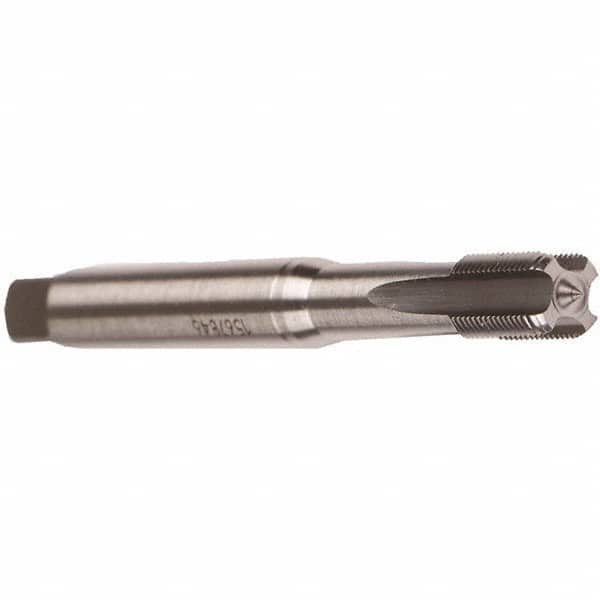

Emuge - M2x0.40 Modified Bottoming RH 6HX Bright Cobalt 3-Flute Straight Flute Machine Tap
Item #: 52300712
Brand: Emuge
Model #: B0102501.0020
Product Specifications
| Tap Type | Machine Tap |
| Thread Size (mm) | M2x0.40 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 1.77170 |
| Overall Length (mm) | 45.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.2756 |
| Thread Length (mm) | 7.00 |
| Neck Length (mm) | 12.00 |
| Neck Length (Decimal Inch) | 0.4724 |
| Shank Diameter (Decimal Inch) | 0.1102 |
| Shank Diameter (mm) | 2.80 |
| Shank Length (Decimal Inch) | 1.30 |
| Shank Length (mm) | 33 |
| Square Size (Decimal Inch) | 0.0827 |
| Square Size (mm) | 2.10 |
| Material Application | Copper Alloys |
| Material Application2 | Copper Alloys |
