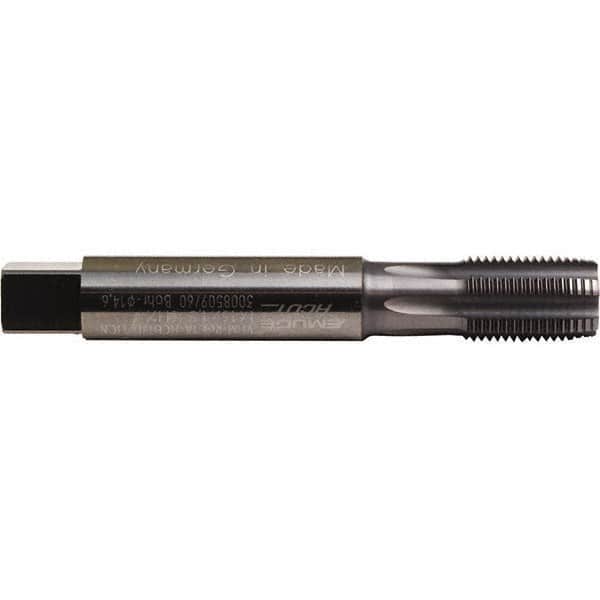

Emuge - M12x1.00 Metric Fine 6HX 5 Flute TiCN Finish Solid Carbide Straight Flute Machine Tap - Bottoming, Right Hand Thread, 110mm OAL, 21mm Thread Length, Oversize
Item #: 52299260
Brand: Emuge
Model #: B016K101.0303
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M12x1.00 |
| Class of Fit | 6HX |
| Number of Flutes | 5 |
| Chamfer | Bottoming |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Fine |
| Overall Length (Decimal Inch) | 4.33070 |
| Overall Length (mm) | 110.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.8268 |
| Thread Length (mm) | 21.00 |
| Neck Length (mm) | 41.00 |
| Neck Length (Decimal Inch) | 1.6142 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 2.72 |
| Shank Length (mm) | 69 |
| Square Size (Decimal Inch) | 0.3543 |
| Square Size (mm) | 9.00 |
| Material Application | Hardened Steel |
