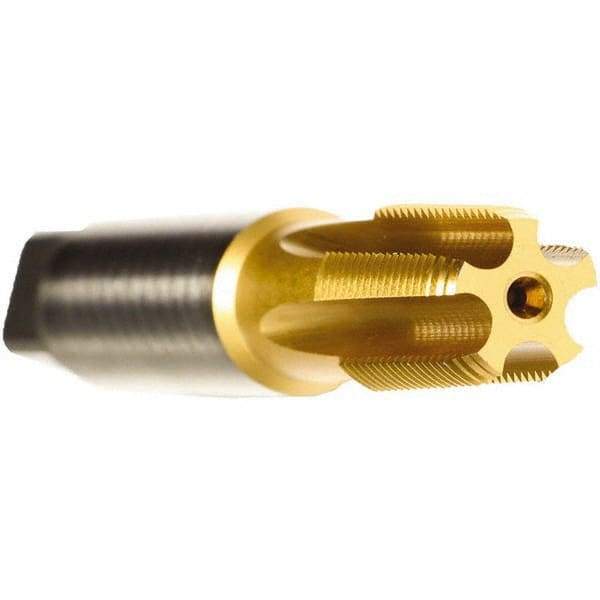

Emuge - 3/4-14 NPTF Thread, 6 Flute Standard Pipe Tap - 3-1/4" OAL, 1.38" Thread Length, 29/32" Shank Diam, TiN Finish, Cobalt
Item #: 52294568
Brand: Emuge
Model #: AW181400.5787
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | 3/4-14 |
| Thread Standard | NPTF |
| Material | Cobalt |
| Finish/Coating | TiN |
| Number of Flutes | 6 |
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Thread Length (Decimal Inch) | 1.3800 |
| Shank Diameter (Decimal Inch) | 0.9063 |
| Square Size (Decimal Inch) | 0.6790 |
| Series/List | KEG |
| Chamfer | Modified Bottoming |
