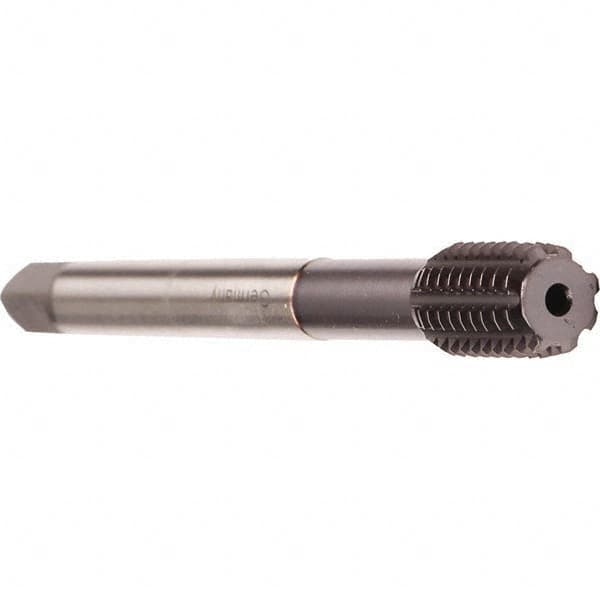

Emuge - 1/2-20 UNF 2BX Bottoming Thread Forming Tap - Cobalt, TiCN Finish, 3.937" OAL, 0.512" Thread Length, Right Hand Thread, Series InnoForm
Item #: 52293479
Brand: Emuge
Model #: CU44Q200.5047
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is used on stainless steels, cast iron and aluminum alloys.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-20 |
| Class of Fit | 2BX |
| Chamfer | Bottoming |
| Finish/Coating | TiCN |
| Material | Cobalt |
| Overall Length (Decimal Inch) | 3.9370 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.5120 |
| Series/List | InnoForm |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Length (Decimal Inch) | 3.43 |
| Through Coolant | Yes |
| Material Application | Aluminum Alloys |
