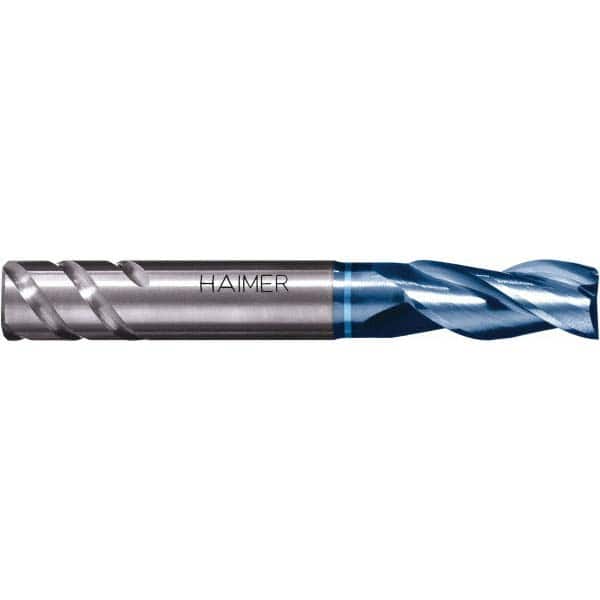

1/8″ Diam 3-Flute Variable Helix Solid Carbide Square Roughing & Finishing End Mill AlTiN Finish, 1/4″ LOC, 2″ OAL, 1/4″ Shank Diam
Item #: 52244316
Brand: HAIMER
Model #: F1003NNL1/8ZSAA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| End Type | Square |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1/4 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Centercutting | Center Cutting |
| Extended Reach | ExtendedReach |
| Helix Angle | Variable |
| Reach Length (Decimal Inch) | 0.31 |
| Reach Length (Inch) | 5/16 |
| Neck Diameter (Decimal Inch) | 0.1210 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Overall Length Tolerance (Decimal Inch) | +0.002/-0.002 |
