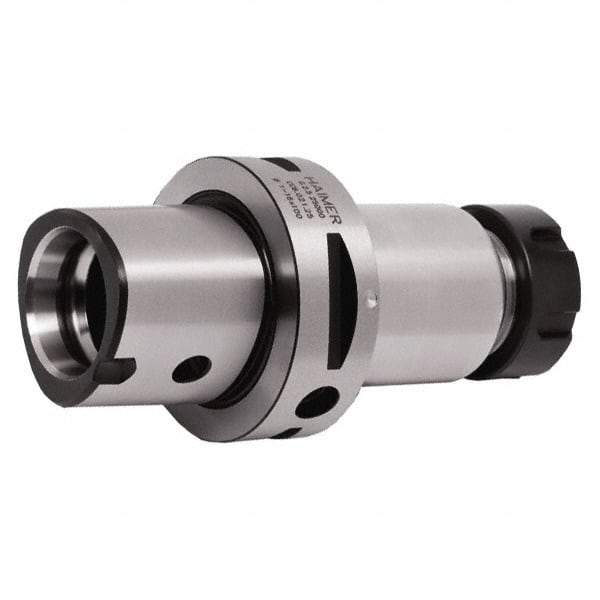

HAIMER - 0.02" to 0.276" Capacity, 100mm Projection, Capto C6 Taper Shank, ER11 Collet Chuck - 0.0001" TIR
Item #: 52243359
Brand: HAIMER
Model #: CC6.021.11.7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Mini-ER |
| Collet Series | ER11 |
| Shank Type | Taper Shank |
| Taper Size | Capto C6 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9400 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Maximum Collet Capacity (Decimal Inch) | 0.2760 |
| Type | ER Collet |
| Nose Diameter (Decimal Inch) | 0.6300 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0001 |
| Collet Nut Diameter (Decimal Inch) | 0.4331 |
| Collet Nut Diameter (mm) | 11.00 |
