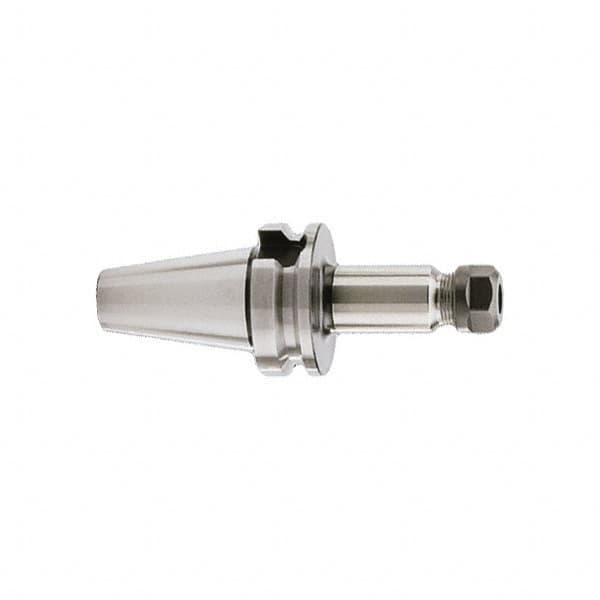

HAIMER - 0.05" to 0.51" Capacity, 3.94" Projection, BT50 Taper Shank, ER20 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 52237047
Brand: HAIMER
Model #: 50.521.20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 3.9400 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0500 |
| Maximum Collet Capacity (Decimal Inch) | 0.5100 |
| Type | ER Collet |
| Nose Diameter (Decimal Inch) | 1.3300 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.7874 |
| Collet Nut Diameter (mm) | 20.00 |
