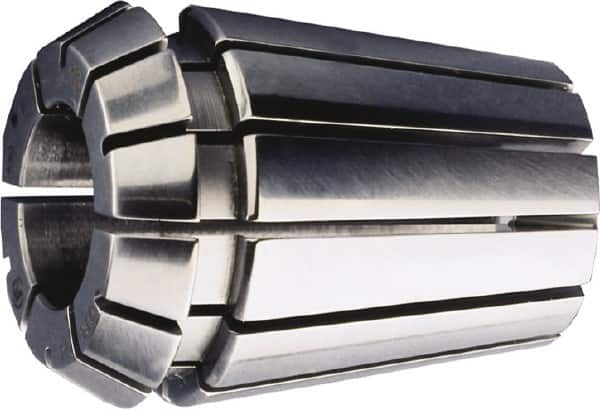

HAIMER - 0.5225 to 0.5625" ER25 Collet - 0.0002" TIR
Item #: 52227535
Brand: HAIMER
Model #: 81.250.9/16Z
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER25 |
| Size (Inch) | 9/16 |
| Size (Decimal Inch) | 0.5625 |
| TIR (Decimal Inch) | 0.000200 |
| Minimum Collet Capacity (Decimal Inch) | 0.5225 |
| Maximum Collet Capacity (Decimal Inch) | 0.5625 |
| Collet System | ER |
| PSC Code | 5136 |
